Flexible and Labor-saving EP 1500kg 1.5ton 1.5T 3306lb Electric Pallet Truck With Lithium Battery F4

Condition : New

Brand Name : KAD

Place of Origin : Jiangsu, China, CN;JIA

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert

Drive Type : Fwd

Fork Length : 1150 mm(45.28in)

Fork Width : 150 mm(5.91in)

Operating Mode : Standing Operation

Terrain Adaptability : Offroad, Indoor Flooring, Outdoor Pavement, Rough Terrain, Other

Manufacturer : EP

Model designation : F4

Load capacity : 1500kg

Load center distance : 600mm

Service weight : 120kg

Axle loading, laden front/rear : 480kg/1140kg

Warranty of core components : 1 Year

Weight (KG) : 120 kg

Power Souce : Dc Motor

Warranty : 1 Year

Type : Powered Pallet Truck

Load Capacity : 1.5 ton

MOQ : 1

Price : $480-700

Contact Now

Product Description

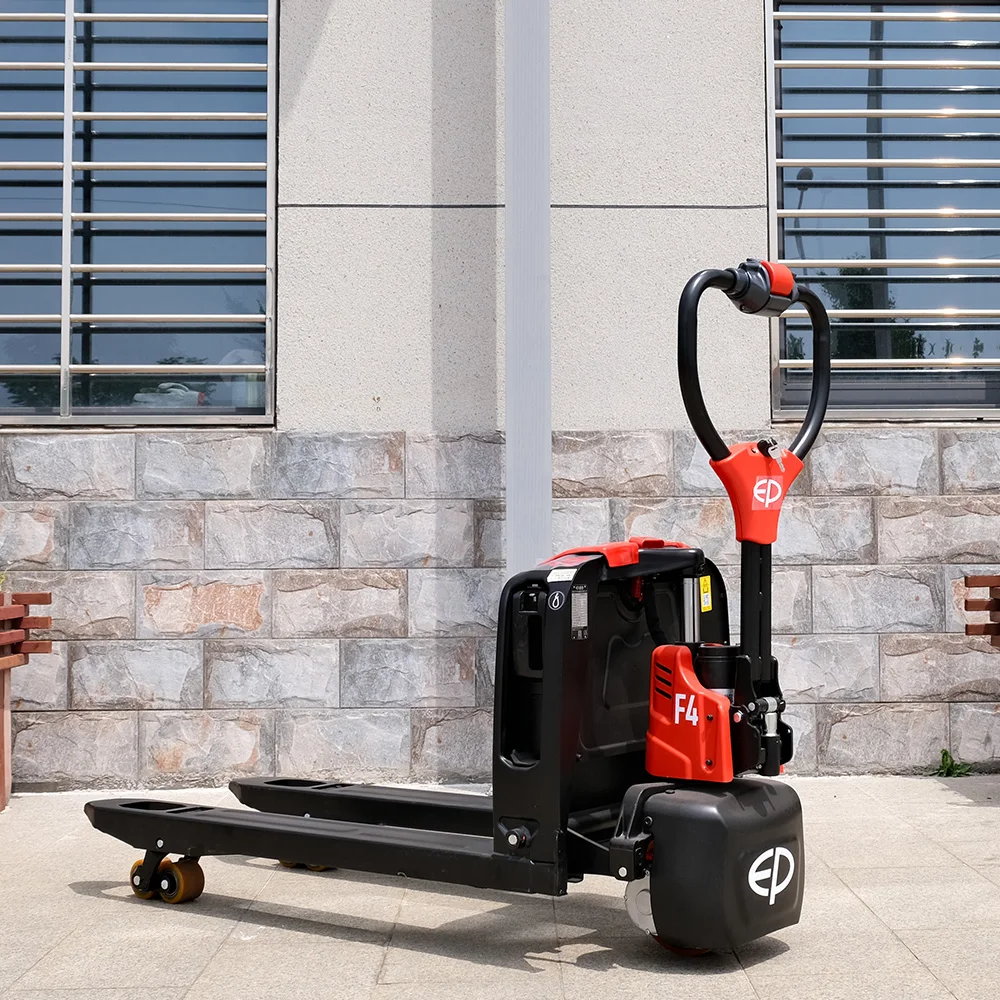

Flexible and labor-saving EP 1500kg 1.5ton 1.5T 3306lb Electric pallet truck with Lithium battery F4

The EP brand F4 electric transport vehicle has multiple advantages. Based on the general characteristics of electric transport vehicles and common market demands, the following are some advantages applicable to the EP brand F4 electric transport vehicle Efficient and energy-saving, low noise, easy operation, low maintenance cost, environmentally friendly and pollution-free, high load-bearing capacity, high durability, and stronger safety

Main Features

1. Light weight, easy to operate.

2. Use electromechanical integrated hydraulic station.

3. High strength steel fork structure, safe and reliable, durable.

4. Low price, economical and practical.

The EP brand F4 electric transport vehicle has multiple advantages. Based on the general characteristics of electric transport
vehicles and common market demands, the following are some advantages applicable to the EP brand F4 electric transport vehicle
Efficient and energy-saving, low noise, easy operation, low maintenance cost, environmentally friendly and pollution-free, high
load-bearing capacity, high durability, and stronger safety.

Distinguishing mark	1.1	Manufacturer			EP
		1.2	Model designation			F4
		1.3	Drive unit			Electric
		1.4	Operator type			Pedestrian
		1.5	rated capacity	Q	kg	1500
		1.6	Load center distance	c	mm	600
		1.7	Load distance centre of drive axle to fork	x	mm	950
		1.8	Wheelbase	y	mm	1180
Service weight	2.1	Service weight		kg	120
		2.2	Axle loading, laden front/rear		kg	480/1140
		2.3	Axle loading, unladen front/rear		kg	90/30
Tyres/chassis	3.1	Tyre type			Polyurethane
		3.2	Tyre size, front		mm	210x70
		3.3	Tyre size, rear		mm	Ф80x60( Ф74x88)
		3.4	Additional wheels		mm	Ф74x30 optional
		3.5	Wheels, number front/rear (x=drive wheels)		mm	1x 2/4 (1x 2/2)
		3.6	Tread, front	b10	mm	---
		3.7	Tread, rear	b11	mm	535/410

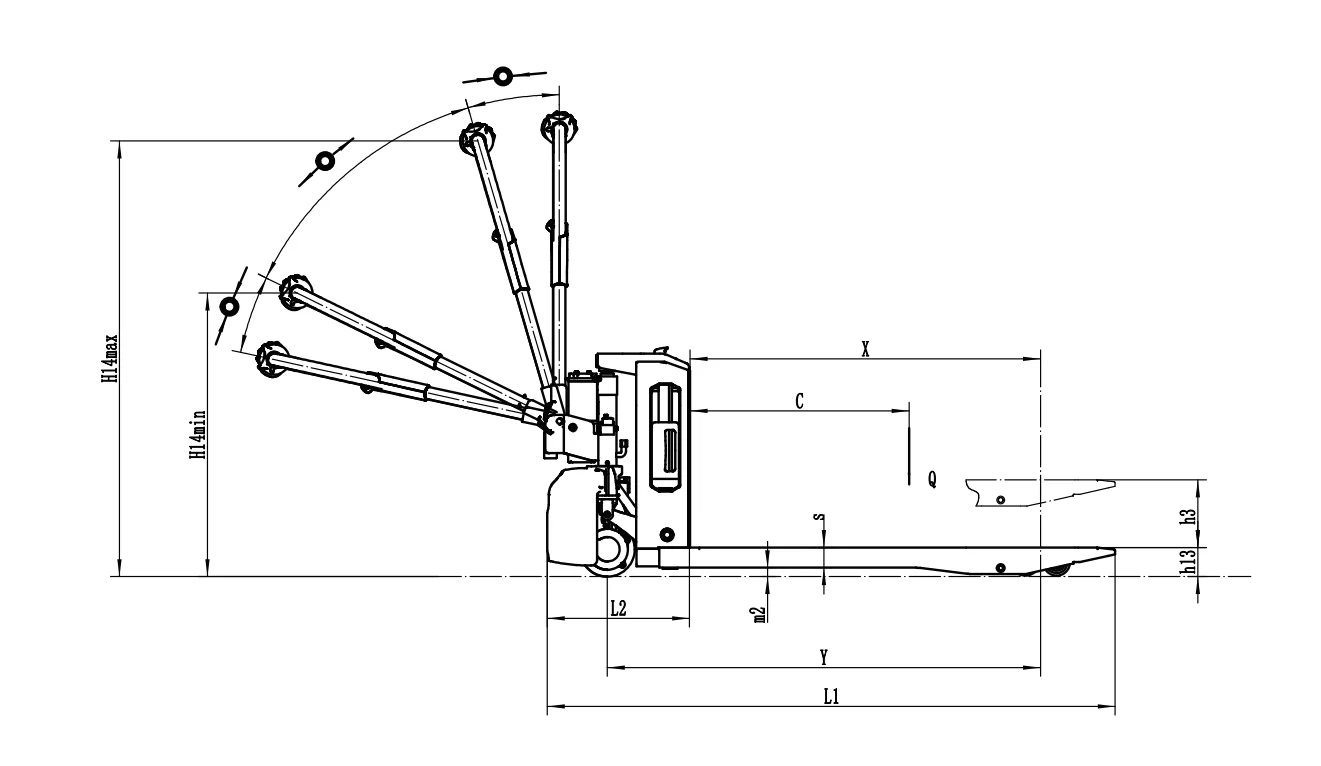

Dimensions	4.1	Lift height	h3	mm	105
		4.2	Height drawbar in driving position min./max.	h14	mm	750/1190
		4.3	Lowered height	h13	mm	82
		4.4	Overall length	l1	mm	1550
		4.5	Length to face of forks	l2	mm	400
		4.6	Overall width	b1/b2	mm	695/590
		4.7	Fork dimensions	s/e/l	mm	55/150/1150
		4.8	Distance between fork-arms	b5	mm	685/560
		4.9	Ground clearance, center of wheelbase	m2	mm	25

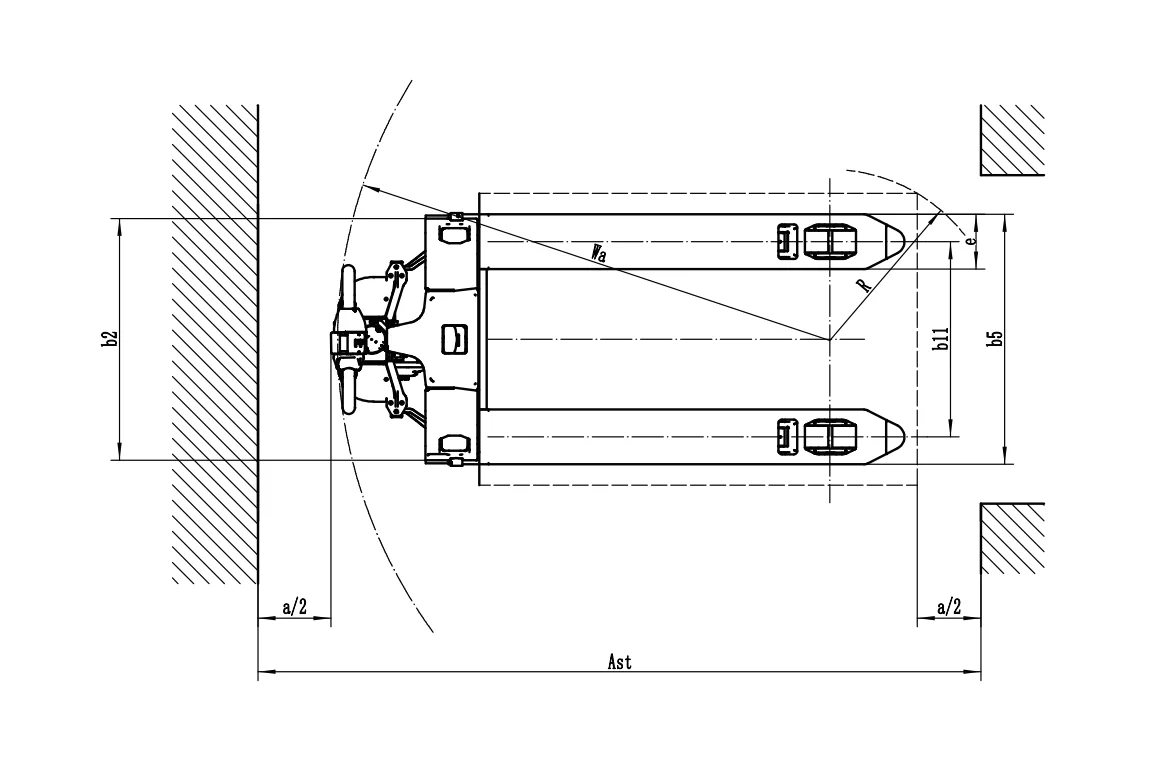

		4.10	Aisle width for pallets 1000×1200 crossways	Ast	mm	2160
		4.11	Aisle width for pallets 800×1200 crossways	Ast	mm	2025
		4.12	turning radius	Wa	mm	1360
Performance data	5.1	Travel speed, laden/unladen		km/h	4/4.5
		5.2	Lifting speed, laden/unladen		m/s	0.017/0.020
		5.3	Lowering speed, laden/unladen		m/s	0.046/0.058
		5.4	Max. gradeability, laden/unladen		%	5/16
		5.5	Service brake			Electromagnetic
Electric-engine	6.1	Drive motor rating S2 60 min		kw	0.75
		6.2	Lift motor rating at S3 15%		kw	0.5

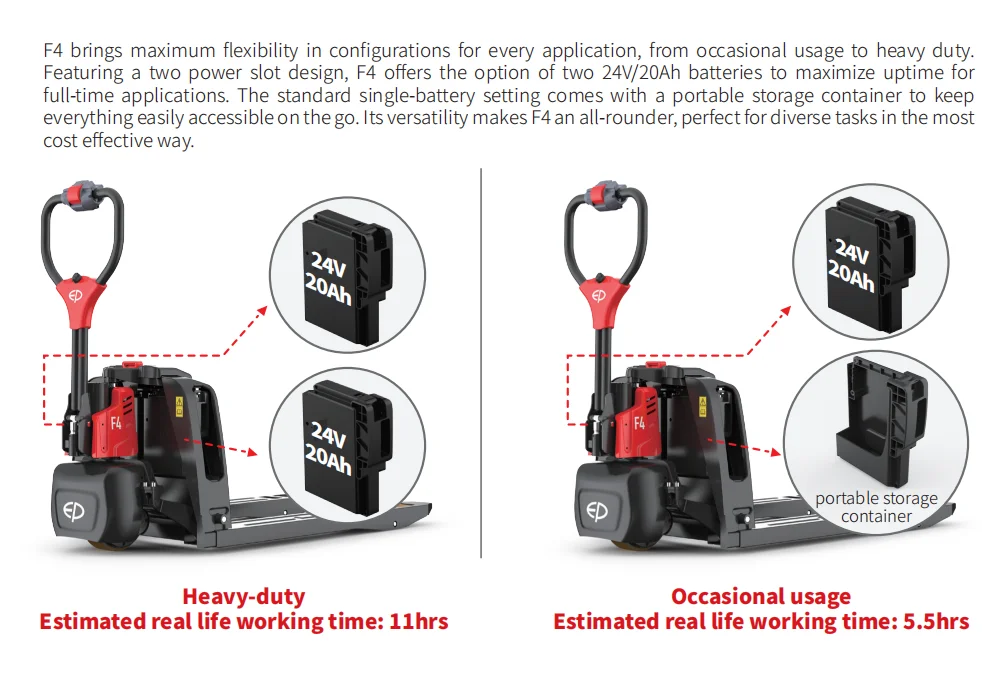

		6.3	Battery voltage/nominal capacity		V/Ah	24/20
		6.4	Battery weight		kg	5
Addition data	7.1	Type of drive unit			DC
		7.2	Steering design			Mechanical
		7.3	noise pressure level at the driver's ear		dB(A)	<74

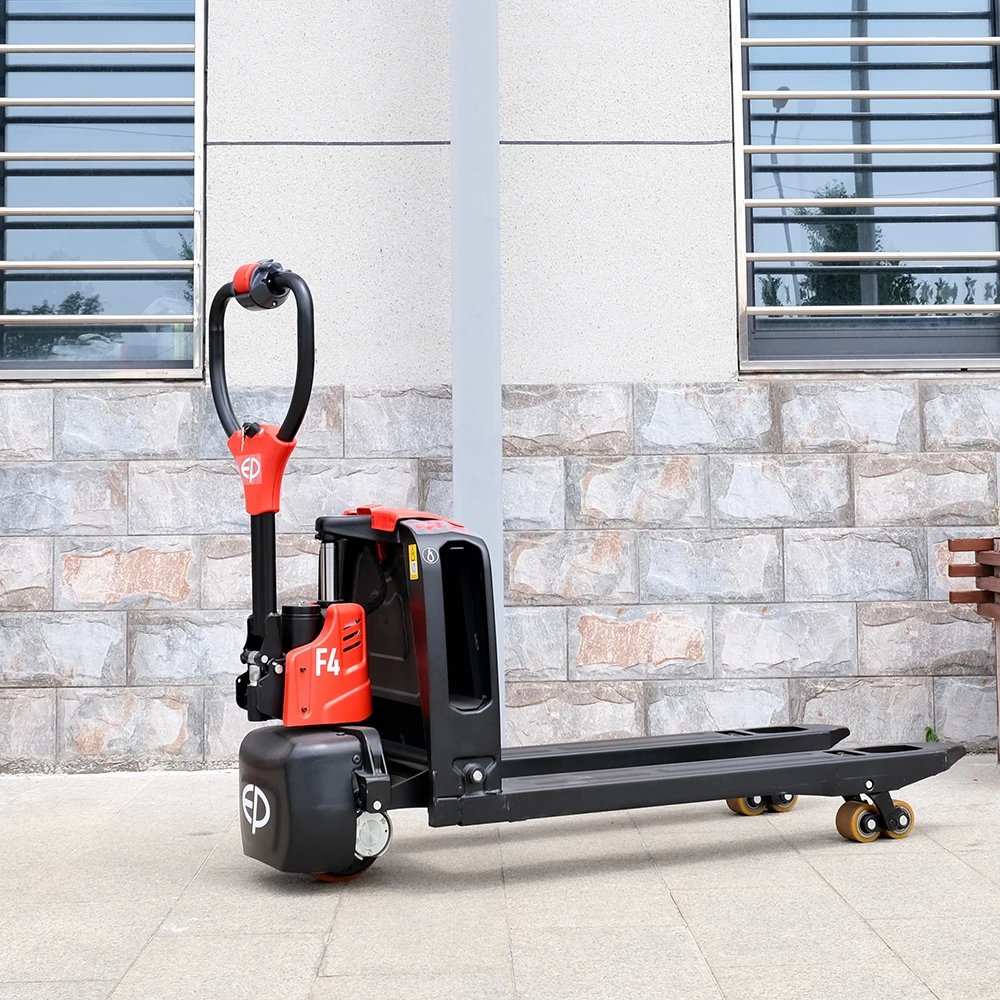

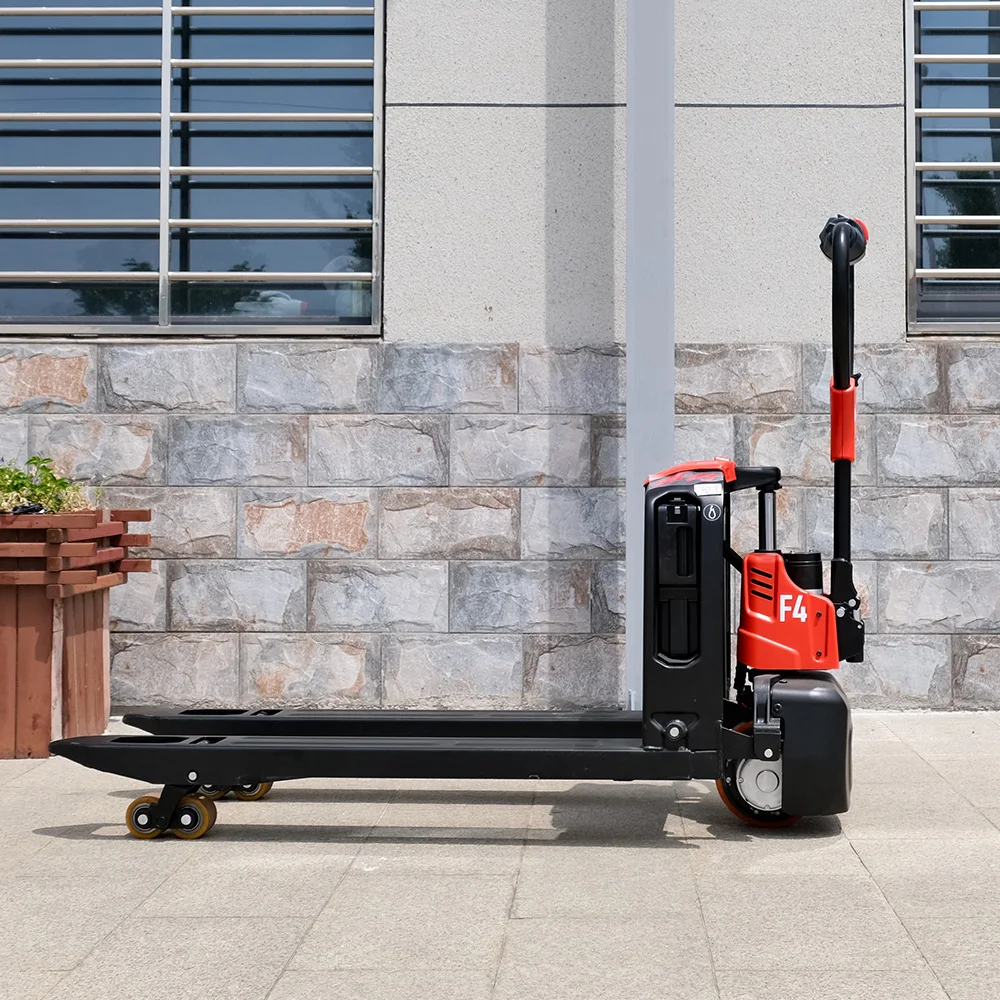

Flexible and Labor-saving EP 1500kg 1.5ton 1.5T 3306lb Electric Pallet Truck With Lithium Battery F4 Images
